manufacturer：上海邦泉泵业制造有限公司
shanghai bangquan pump manufacturing co., ltd
86-21-57648032 shbqmp@163.com
产品特点
1.采用精密铸造，表面光滑整洁，并具有更高的强度。
2.阀球采用专用机进一步研磨加工，圆整度高，密封性能好。
3.精确计算膜片移动距离，降低膜片受力，具有更长的使用寿命。
4.快速接头连接设计，密封性能好。
5.三段式上下盖，安装拆卸清洗灵活方便。
6.一体式设计的膜片护块，具有优异的耐压，耐高温性能。
7.膜片连杆采用耐磨不锈钢，具有更好的耐腐蚀性，更长的寿命。

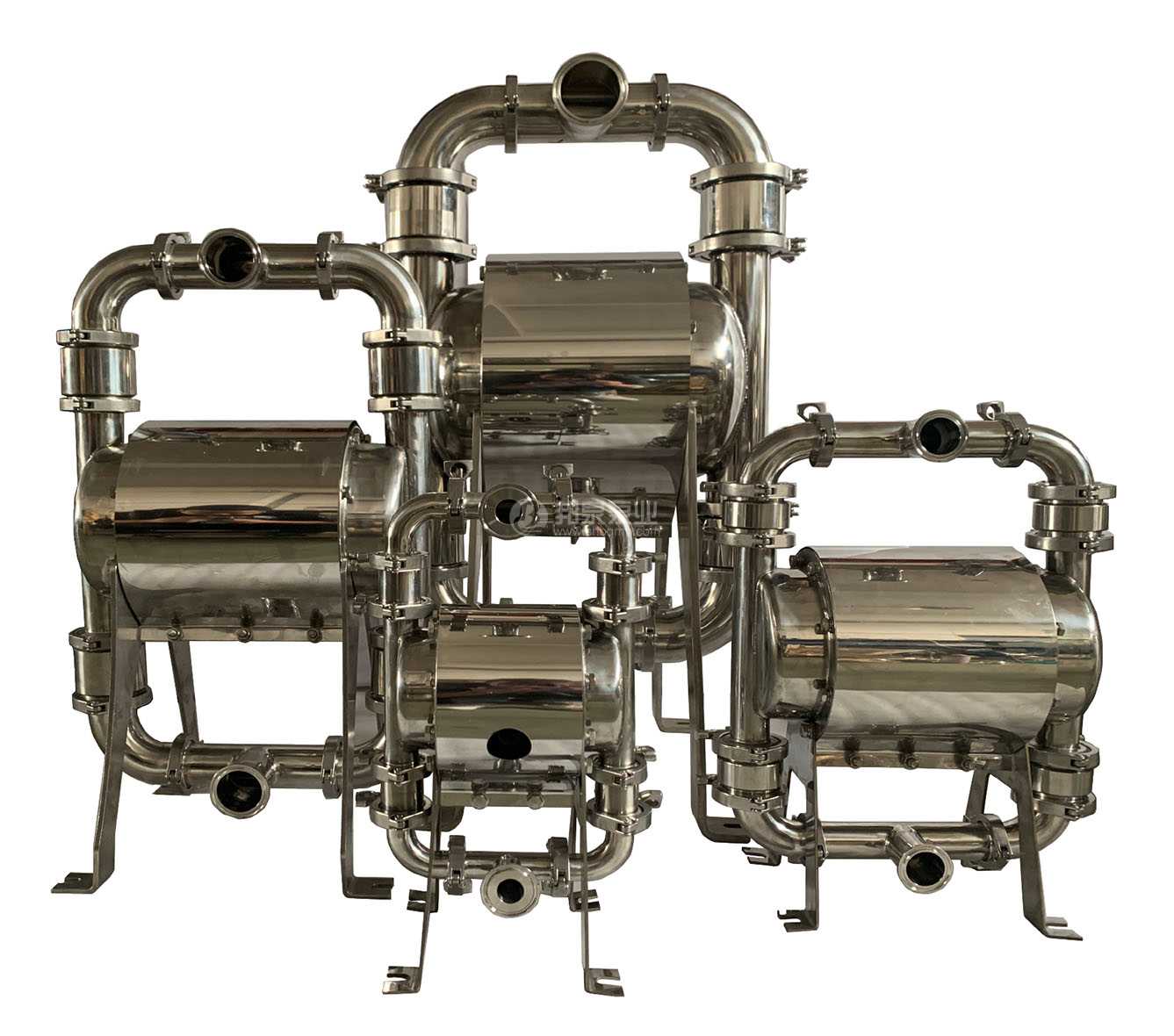

bangquan sanitary garde diaphragm pump characteriastic
1. adopt precision casting to make sure the high strength and surface is smooth.
2. adopt special machine to grind valve ball to promote roundness and lift-off seal.
3. accurate calculation of diaphragm movement distance, reduce the diaphragm force,so that it has a longer service life.
4. quick joint connection design, good sealing performance, actual dry suction can reach 4-7 meters.
5. three-stage upper and lower cover for easy installation, disassembly and cleaning.
6. one piece design diaphragm protection module, with excellent pressure, high temperature res is t a n ce , widely used in the industry of filter press.
7. diaphragm connecting rod adopts wear-resistant stainless steel for better corrosion resistance and longer life.
bangquan sanitary grade pneumatic diaphragm pump applications:
1. beverage industry : fermentation,wine, juice ,beer , milk , ice-cream
2. medicine : glucose, oral liquid, ointment, alcohol, plasma
3. milk production : milk , cheese, butter, yogurt, grease
4. meat industry: sausage stuffing, fat, broth, gelatin, pet food
5. canned food industry: potato salad, soups, stews, tomatoes, appetizers, puddings, condiments
6. cosmetics industry: perfumes, creams, body lotions, shampoos, toothpastes
7. condiment industry: salt agent, acid agent, sweetener, umami agent, soy sauce, vinegar, pepper sauce
8. daily chemical industry: detergent, cream, shampoo, latex, hand cream, hair gel
9. liquor industry: white wine, red wine, foreign wine, health wine, yellow rice wine, beer, wine

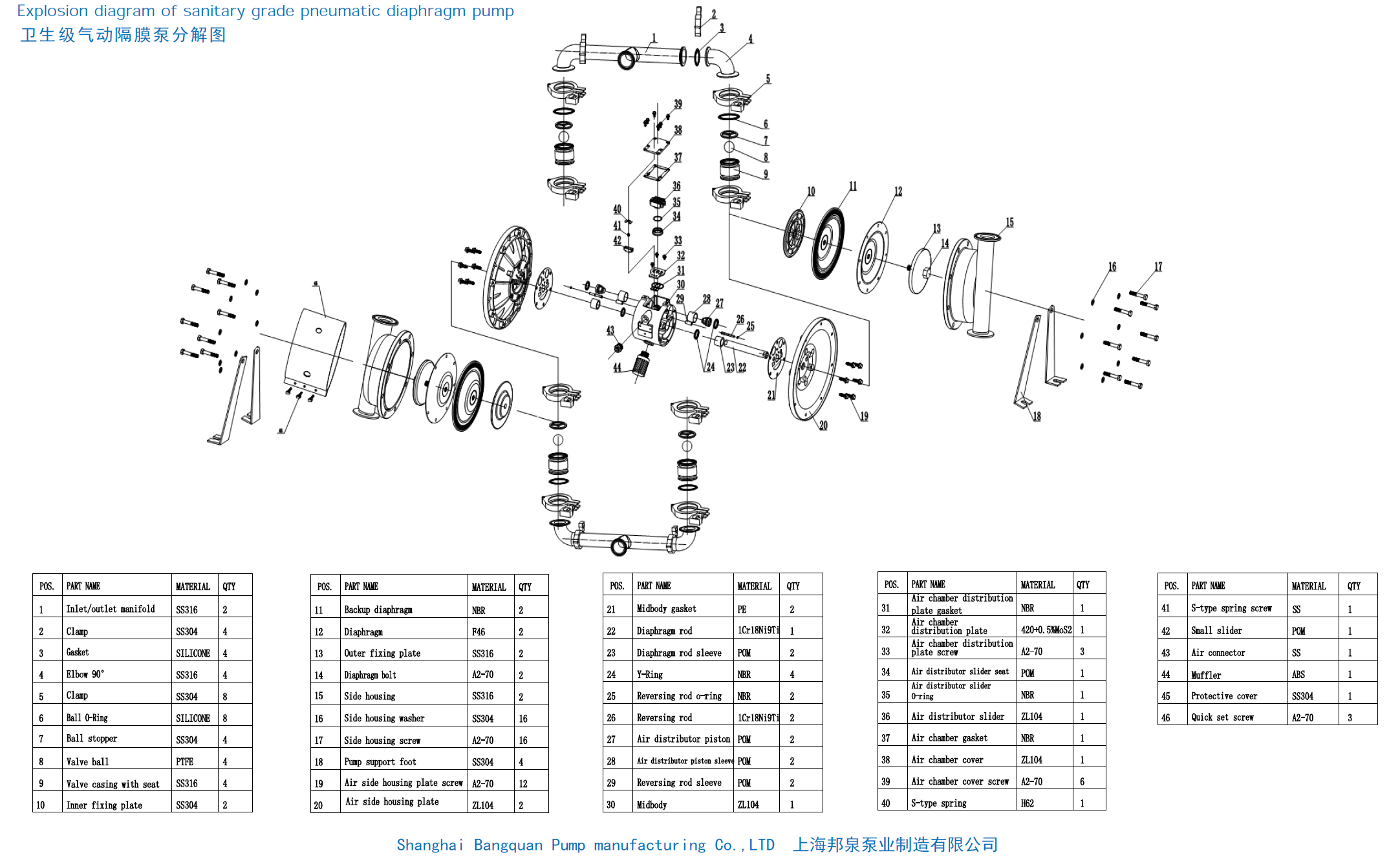

卫生级气动隔膜泵分解图 explosion diagram of sanitary grade pneumatic diaphragm pump
