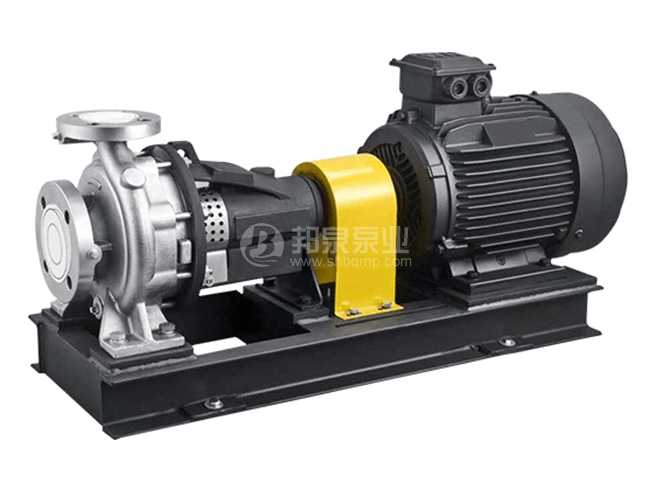

xa型单级单吸离心泵 single stage centrifugal pump
上海邦泉泵业制造有限公司 咨询热线：021-57648032
性能表performance table n=2900rpm
|
型号 model |
流量 capacity q |
扬程 head h (m) |
转速 speed n (rpm) |
功率 power p (kw) |
电机型号 motor supplied (kw) |
泵效率 eff. л (%) |
必需汽蚀余量 (npsh)r (m) |
叶轮直径 lmpeller diameter (mm) |
泵口径 pump nozzle (mm) |
锥管直径 tape pipe diameter (mm) |
重量 weight (kg) |
||||
|
m3/h |
l/s |
轴 shaft |
电机 motor |
ln |
out |
ln |
out |
||||||||
|
xa50/13 |
36 60 72 |
10 16.67 20 |
25.5 23 20.5 |
2900 |
3.85 4.95 5.36 |
5.5 5.5 7.5 |
y132s2-2 7.5kw |
65 76 75 |
2.5 3.2 4 |
φ139 |
65 |
50 |
80 |
80 |
34 |
|
xa50/13a |
33.5 56 67.5 |
9.31 15.56 18.75 |
22 19.5 17.2 |
2900 |
3.19 4.02 4.33 |
4 5.5 5.5 |
y132s1-2 5.5kw |
63 74 73 |
2.5 3.1 3.6 |
φ130 |
65 |
50 |
80 |
80 |
34 |
|
xa50/13b |
31 52 62 |
8.61 14.44 17.22 |
18.5 16.5 14.8 |
2900 |
2.56 3.24 3.52 |
3 4 5.5 |
y132s1-2 5.5kw |
61 72 71 |
2.5 2.9 3.3 |
φ120 |
65 |
50 |
80 |
80 |
34 |
|
xa50/16 |
40 65 78 |
11.11 18.05 21.67 |
41.5 38 35 |
2900 |
7.06 9.09 10.05 |
11 11 11 |
y160m1-2 11kw |
64 74 74 |
2.5 3.5 4.2 |
φ174 |
65 |
50 |
80 |
80 |
38 |
|
xa50/16a |
38 61.5 74 |
10.56 17.1 20.6 |
37 33.8 31.2 |
2900 |
6.19 7.9 6.75 |
7.5 11 11 |
y160m1-2 11kw |
62 72 72 |
2.5 3.3 3.9 |
φ165 |
65 |
50 |
80 |
80 |
38 |
|
xa50/16b |
35.5 58 69.5 |
9.86 16.11 19.31 |
32.5 29.5 27 |
2900 |
5.24 6.66 7.36 |
5.5 11 11 |
y160m1-2 11kw |
60 70 69.5 |
2.35 3.1 3.7 |
φ155 |
65 |
50 |
80 |
80 |
38 |
|
xa50/20 |
36 60 72 |
10 16.67 20 |
62 56 50 |
2900 |
10.48 13.07 14.42 |
15 15 18.5 |
y160l-2 18.5kw |
58 70 68 |
2.5 3.2 4 |
φ214 |
65 |
50 |
80 |
80 |
46 |
|
xa50/20a |
34.5 57.5 69 |
9.6 16 19.2 |
56 50.5 45 |
2900 |
9.25 11.5 12.64 |
11 15 15 |
y160m2-2 15kw |
57 69 67 |
2.5 3.1 3.75 |
φ205 |
65 |
50 |
80 |
80 |
46 |
|
xa50/20b |
33 54.5 65.5 |
9.1 15.1 18.3 |
50.6 45.6 40.5 |
2900 |
8.13 10 11 |
11 15 15 |
y160m2-2 15kw |
55.5 67.5 66 |
2.5 3 3.5 |
φ195 |
65 |
50 |
80 |
80 |
46 |
|
xa50/26g |
40 65 78 |
11.11 18.05 21.67 |
100 91 82 |
2900 |
20.17 25.97 29.03 |
30 30 37 |
y200l2-2 37kw |
54 62 66 |
2.5 3.5 4.2 |
φ264 |
65 |
50 |
80 |
80 |
63 |
|
xa50/26ga |
38.5 63 75.5 |
10.69 17.5 20.97 |
92.5 84 75.6 |
2900 |
18.29 23.63 36.34 |
22 30 30 |
y200l1-2 30kw |
53 61 59 |
2.4 3.3 3.9 |
φ255 |
65 |
50 |
80 |
80 |
63 |
|
xa50/26gb |
37 60.5 72.5 |
10.28 16.81 20.14 |
85.5 77.5 69.8 |
2900 |
16.57 21.29 23.76 |
18.5 30 30 |
y200l1-2 30kw |
52 60 58 |
2.3 3.2 3.9 |
φ245 |
65 |
50 |
80 |
80 |
63 |
性能表performance table n=1450rpm
|
型号 model |
流量 capacity q |
扬程 head h (m) |
转速 speed n (rpm) |
功率 power p (kw) |
电机型号 motor supplied (kw) |
泵效率 eff. л (%) |
必需汽蚀余量 (npsh)r (m) |
叶轮直径 lmpeller diameter (mm) |
泵口径 pump nozzle (mm) |
锥管直径 tape pipe diameter (mm) |
重量 weight (kg) |
||||
|
m3/h |
l/s |
轴 shaft |
电机 motor |
ln |
out |
ln |
out |
||||||||
|
xa50/13 |
18 30 36 |
5 8.33 10 |
6.4 5.8 5.2 |
1450 |
0.514 0.658 0.739 |
0.75 0.75 1.1 |
y90s-4 1.1kw |
61 72 69 |
2.2 2.4 2.8 |
φ139 |
65 |
50 |
80 |
65 |
34 |
|
xa50/16 |
20 32 38 |
5.55 8.88 10.55 |
10.3 9.5 8.8 |
1450 |
0.93 1.18 1.3 |
1.1 1.5 1.5 |
y90l-4 1.5kw |
60 70 70 |
2.3 2.4 3 |
φ174 |
65 |
50 |
80 |
65 |
38 |
|
xa50/20 |
18 30 36 |
5 8.33 10 |
15.4 13.5 11.6 |
1450 |
1.37 1.7 1.86 |
1.5 2.2 2.2 |
y100l1-4 2.2kw |
55 65 61 |
2.2 2.3 2.9 |
φ214 |
65 |
50 |
80 |
65 |
46 |
|
xa50/26 |
20 32 38 |
5.55 8.89 10.55 |
25 22.5 19.8 |
1450 |
2.62 3.27 3.63 |
3 4 5.5 |
y132s-4 5.5kw |
52 60 56.5 |
2.3 2.4 3 |
φ264 |
65 |
50 |
80 |
65 |
63 |
|
xa50/32 |
24 40 48 |
6.67 11.11 13.33 |
36 34 32 |
1450 |
5 6.38 7.09 |
5.5 7.5 11 |
y160m-4 11kw |
47 58 59 |
2 2.5 3.2 |
φ328 |
65 |
50 |
80 |
65 |
101 |
|
xa50/32a |
23 38.5 46 |
6.39 10.69 12.78 |
32.5 30.6 28.7 |
1450 |
4.52 5.73 6.36 |
5.5 7.5 7.5 |
y132m-4 7.5kw |
45 56 56.5 |
2 2.4 3 |
φ315 |
65 |
50 |
80 |
65 |
101 |
|
xa50/32b |
22 36.5 44 |
6.11 10.14 12.22 |
29.4 27.7 26 |
1450 |
4.24 5.1 5.66 |
5.5 7.5 7.5 |
y132m-4 7.5kw |
41.5 54 55 |
2 2.3 2.8 |
φ300 |
65 |
50 |
80 |
65 |
101 |
