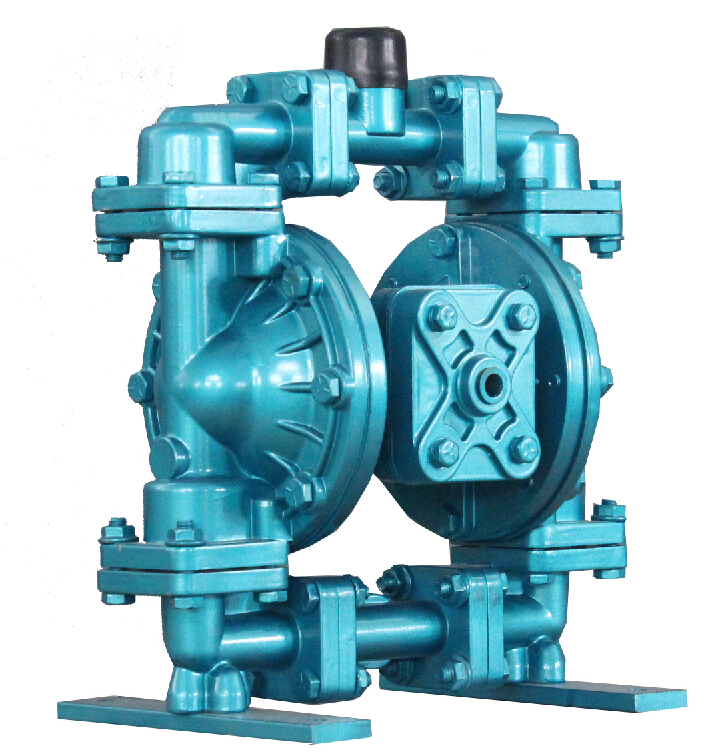

skylink ls15 air drive diaphragm pump skylink ls15 气动隔膜泵
aluminium alloy (housing material)
|
model |
size(dn) |
housing material |
diaphragm material |
valve seat |
valve ball |
other |
|
ls15 aa-aa-sp-sp-sp-00 |
15 |
aa |
sp |
sp |
sp |
00 |
|
ls15 aa-aa-t/s-tt-tt-00 |
15 |
aa |
t/s |
tt |
tt |
00 |
|
ls15 ss-aa-sp-sp-sp-00 |
15 |
ss |
sp |
sp |
sp |
00 |
|
ls15 ss-aa-t/s-tt-tt-00 |
15 |
ss |
t/s |
tt |
tt |
00 |
|
suction/discharge |
capacity |
air valve |
solids-handling |
heads up to |
displacement |
|
rc1/2"（r1"）threaded port |
57 lpm (max) 57 升/分钟(最大) |
no-lube, no-stall 无润滑，无死点 |
1/8" / 3mm (max) 1 分/3 毫米（最大） |
125 psi / 8.6bar of water |
0.04gallon / 0.15 liter |
dimension 尺寸图

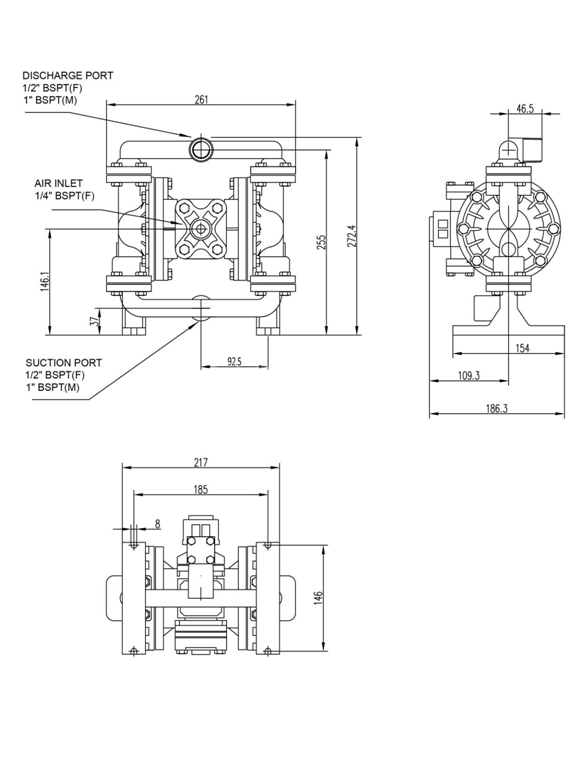

aluminium alloy (housing material)
铝合金（腔体材质）
bspt connection bspt 接口

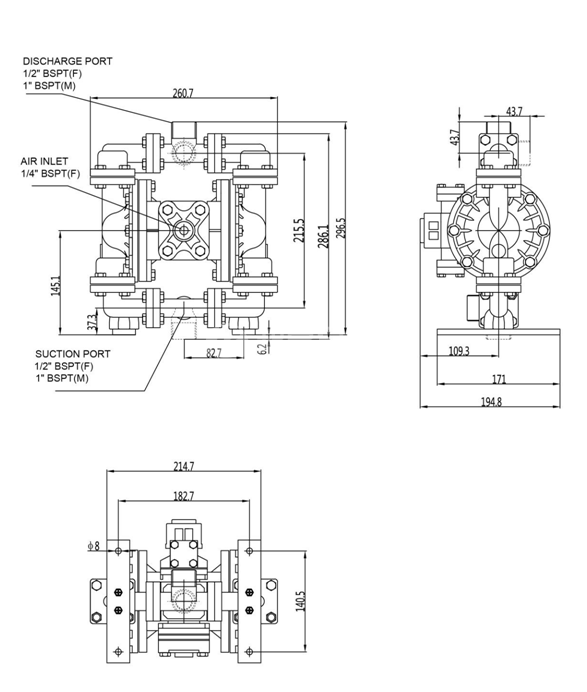

stainless steel (housing material)
不锈钢（腔体材质）
