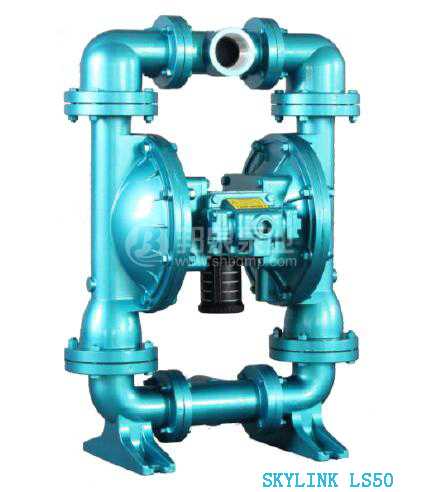

skylink ls50 air drive diaphragm pump ls50气动隔膜泵
ls50 air drive diaphragm pump ls50气动隔膜泵常见型号
|
model |
size(dn) |
housing material |
intermediate material |
diaphragm material |
valve seat material |
valve ball material |
other |
|
ls50 aa-aa-ne-pp-ne-00 |
50 |
aa |
aa |
ne |
pp |
ne |
00 |
|
ls50 aa-aa-t/n-tt-tt-00 |
50 |
aa |
aa |
t/n |
tt |
tt |
00 |
|
ls50 aa-aa- sp-sp-sp-00 |
50 |
aa |
aa |
sp |
sp |
sp |
00 |
|
ls50 ss-aa-ne-pp-ne-00 |
50 |
ss |
aa |
ne |
pp |
ne |
00 |
|
ls50 ss-aa-sp-sp-sp-00 |
50 |
ss |
aa |
sp |
sp |
sp |
00 |
|
ls50 ss-aa-t/n-tt-tt-00 |
50 |
ss |
aa |
t/n |
tt |
tt |
00 |
|
ls50 cs-aa-t/n-tt-tt-00 |
50 |
cs |
aa |
t/n |
tt |
tt |
00 |
|
ls50 cs-aa- sp-sp-sp-00 |
50 |
cs |
aa |
sp |
sp |
sp |
00 |
|
ls50 cs-aa-ne-pp-ne-00 |
50 |
cs |
aa |
ne |
pp |
ne |
00 |

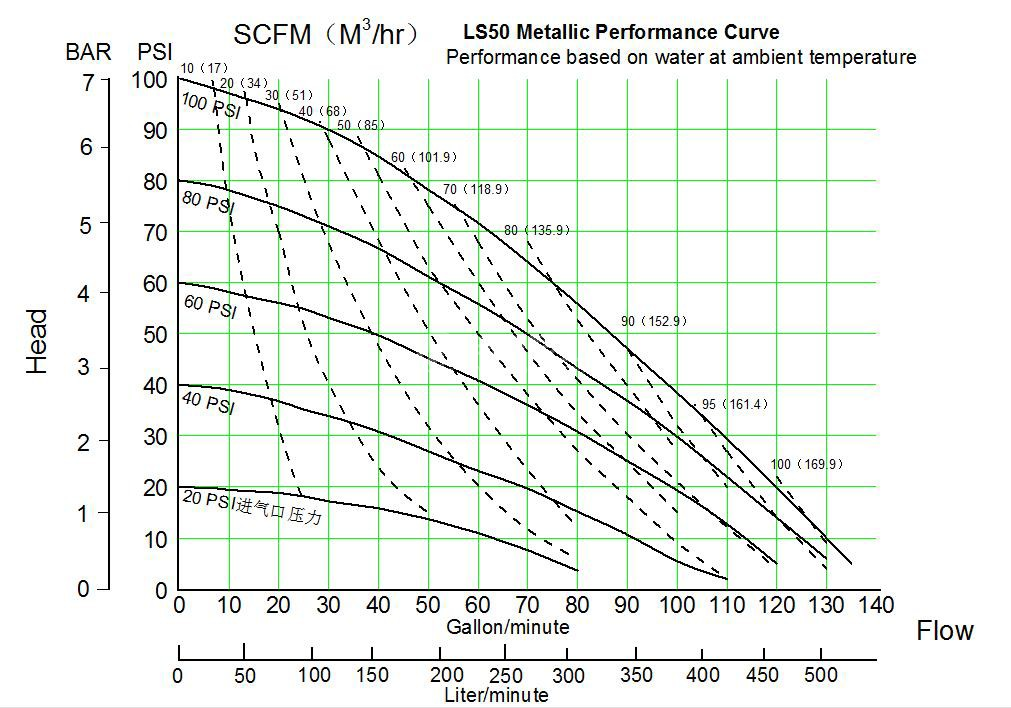

performance 性能曲线
capacity 流量及性能参数
skylink pumps are designed to be powered only by compressed air
|
suction/discharge |
capacity |
air valve |
solids-handling |
heads up to |
displacement |
weight(kg) |
|
|
rc2"（可定做法兰接口） |
511 lpm (max) 511 升/分钟(最大) |
no-lube, no-stall |
3/8" / 9mm (max) |
125 psi / 8.6bar of water |
0.43gallon / 1.63 liter |
43(al) |
73(cs/ss) |
