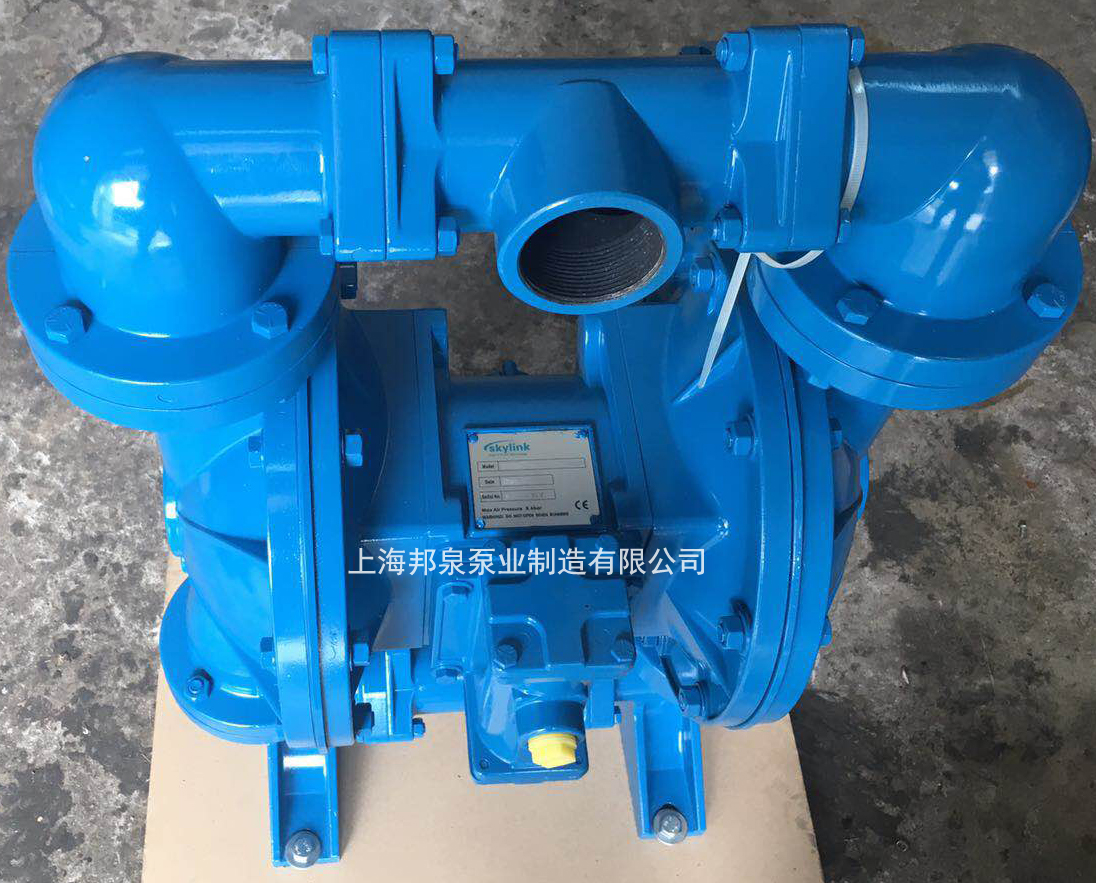

skylink气动隔膜泵sk50/3aaa/nttt/0b0 sk50/3aaa/ettt/0b0 2寸铝合金特氟龙隔膜泵
skylink 金属气动隔膜泵按口径分：ls15，ls25k、sk40、sk50、sk80，上海邦泉泵业制造有限公司原装正品销售，咨询电话：021-57648032。
2寸铝合金特氟龙隔膜泵
sk50/3aaa/nttt/0b0
sk50/3aaa/ettt/0b0
进气接口：3/4"(bspt)
泵壳材质：铝合金
隔膜材质：teflon
球阀材质：teflon
最大流量：30m3/h
最大出口压力：8.6bar
斯凯力气动隔膜泵工作原理
斯凯力隔膜泵是一种气动、正排量、自吸泵。采用压缩空气作为动力源，依靠向左和向右移动的膜片改变密封的腔体容积来实现进料和出料。隔膜泵由吸入口、排放口、介质室和空气室构成，空气室由主气阀、导向阀、左膜片室和右膜片室的顶针构成，介质室为由左介质、右介质和止回阀构成。止回阀设置在顶部或底部，左、右中腔室通过进料口和出料口连接。隔膜泵工作时，左右膜片均通过压缩空气运动，气阀有润滑要求，干燥的空气可提高气动隔膜泵的性能。压缩空气通过进气口进入气室，在导向阀调节后，压缩空气进入左侧隔膜室，驱动膜片向左移动，结果是左腔容积减小， 液体被挤出。由于右膈膜和左膈膜通过轴连接，右膈膜向左移动，右腔容积增大，吸入液体。当右膈膜的压板接触右顶针时，右顶针可通过导向阀改变压缩空气的方向。空气进入右室，左、右膈膜向右侧移动，左腔容积增大，液体吸入，右腔容积减小，液体被排出。左膈膜压板接触左顶针时，空气进入左腔室，通过导向阀，重复以上动作完成气动隔膜泵的流体连续输送。
sk50隔膜泵常见型号
sk50/3aaa/eeee/0b0 2寸铝合金三道橡胶隔膜泵
sk50/3aaa/ettt/af0 2寸铝合金特氟龙隔膜泵
sk50/3aaa/nepn/0b0 2寸铝合金氯丁橡胶隔膜泵
sk50/3aaa/nepn/0n0 2寸铝合金氯丁橡胶隔膜泵
sk50/3aaa/nepn/df0 2寸铝合金氯丁橡胶隔膜泵
sk50/3aaa/eeee/0n0 2寸铝合金三道橡胶隔膜泵
sk50/3aaa/eeee/df0 2寸铝合金三道橡胶隔膜泵
sk50/3aaa/ettt/0b0 2寸铝合金特氟龙隔膜泵
sk50/3aaa/ettt/0n0 2寸铝合金特氟龙隔膜泵
sk50/3aaa/ettt/df0 2寸铝合金特氟龙隔膜泵
sk50/3xaa/eeee/0n0 2寸不锈钢三道橡胶隔膜泵
sk50/3xaa/eeee/df0 2寸不锈钢三道橡胶隔膜泵
sk50/3xaa/ettt/0b0 2寸不锈钢特氟龙隔膜泵
sk50/3xaa/ettt/0n0 2寸不锈钢特氟龙隔膜泵
sk50/3xaa/ettt/df0 2寸不锈钢特氟龙隔膜泵
sk50/3saa/nepn/0b0 2寸不锈钢氯丁橡胶隔膜泵
sk50/3saa/nepn/0n0 2寸不锈钢氯丁橡胶隔膜泵
sk50/3saa/nepn/df0 2寸不锈钢氯丁橡胶隔膜泵
sk50/3saa/eeee/0b0 2寸不锈钢三道橡胶隔膜泵
sk50/3saa/eeee/0n0 2寸不锈钢三道橡胶隔膜泵
sk50/3saa/eeee/df0 2寸不锈钢三道橡胶隔膜泵
sk50/3saa/ettt/0b0 2寸不锈钢特氟龙隔膜泵
sk50/3saa/ettt/0n0 2寸不锈钢特氟龙隔膜泵
sk50/3saa/ettt/df0 2寸不锈钢特氟龙隔膜泵
sk50/3iaa/nepn/0b0 2寸铸铁氯丁橡胶隔膜泵
sk50/3iaa/nepn/0n0 2寸铸铁氯丁橡胶隔膜泵
sk50/3iaa/nepn/df0 2寸铸铁氯丁橡胶隔膜泵
sk50/3iaa/eeee/0b0 2寸铸铁三道橡胶隔膜泵
sk50/3iaa/eeee/0n0 2寸铸铁三道橡胶隔膜泵
sk50/3iaa/eeee/df0 2寸铸铁三道橡胶隔膜泵
sk50/3iaa/ettt/0b0 2寸铸铁特氟龙隔膜泵
sk50/3iaa/ettt/0n0 2寸铸铁特氟龙隔膜泵
sk50/3iaa/ettt/df0 2寸铸铁特氟龙隔膜泵
sk50/3xaa/ettt/jf0 2寸不锈钢特氟龙隔膜泵
sk50/3saa/nttt/0b0 2寸不锈钢特氟龙隔膜泵
sk50/3xaa/nttt/0b0 2"不锈钢特氟龙隔膜泵
sk50/3xaa/nepn/0b0 2寸不锈钢氯丁橡胶隔膜泵
sk50/3xaa/nepn/0n0 2寸不锈钢氯丁橡胶隔膜泵
sk50/3xaa/nepn/df0 2寸不锈钢氯丁橡胶隔膜泵
sk50/3xaa/eeee/0b0 2寸不锈钢三道橡胶隔膜泵
sk50/3xaa/eexx/df0 2寸不锈钢三道橡胶隔膜泵
