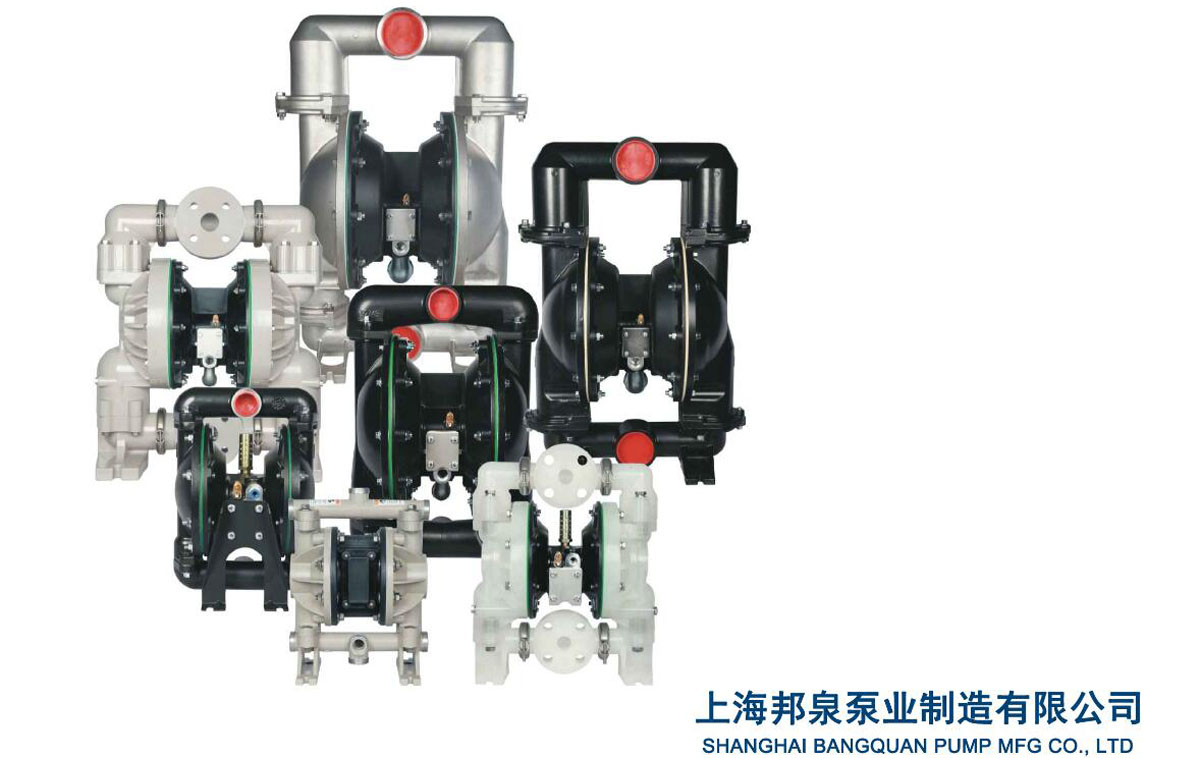

diaphragm pump produced by shanghai bangquan pump manufacturing co., ltd. is divided into pneumatic diaphragm pump and electric diaphragm pump, which is a new type of pump in china. the pneumatic diaphragm pump uses compressed air as the power source, and the electric diaphragm pump is driven by a motor, which can transport a variety of liquids with particles, corrosivity, high viscosity, volatile, flammable and highly toxic. there are eight sizes of diameter: ￠10mm(3/8 inch),￠15mm(1/2 inch),￠25mm(1 inch),￠40mm(1 inch and a half),￠50mm(2 inch and a half),￠65mm(2 inch and a half),￠80mm(3 inch),￠100mm(4 inch). there are usually six kinds of flow materials: aluminum alloy, cast iron, stainless steel, engineering plastics, rubber lining, fluorine lining. according to different liquid media, butadiene rubber, neoprene rubber, fluorine rubber, polytetrafluoroethylene and other materials are used to meet the needs of different users.
上海邦泉泵业制造有限公司生产的隔膜泵分为气动隔膜泵、电动隔膜泵，是目前国内新颖的一种泵类。气动隔膜泵采用压缩空气为动力源，电动隔膜泵采用电动机驱动，均可输送各种带颗粒的、腐蚀性、高粘度、易挥发、易燃、剧毒的液体。共有八种规格直径：￠10mm(3/8寸)、￠15mm(1/2寸),￠25mm(1寸)、￠40mm( 1寸半)、￠50mm(2寸)、￠65mm(2寸半)、￠80mm(3寸)、￠100mm(4寸)。常有六种过流材质：铝合金、铸铁、不锈钢、工程塑料、衬胶、衬氟。根据不同液体介质分别采用丁晴橡胶、氯丁橡胶、氟橡胶、聚四氟乙烯等材质隔膜片，以满足不同用户的需要。
the following describes the pneumatic diaphragm pump.
以下介绍气动隔膜泵。

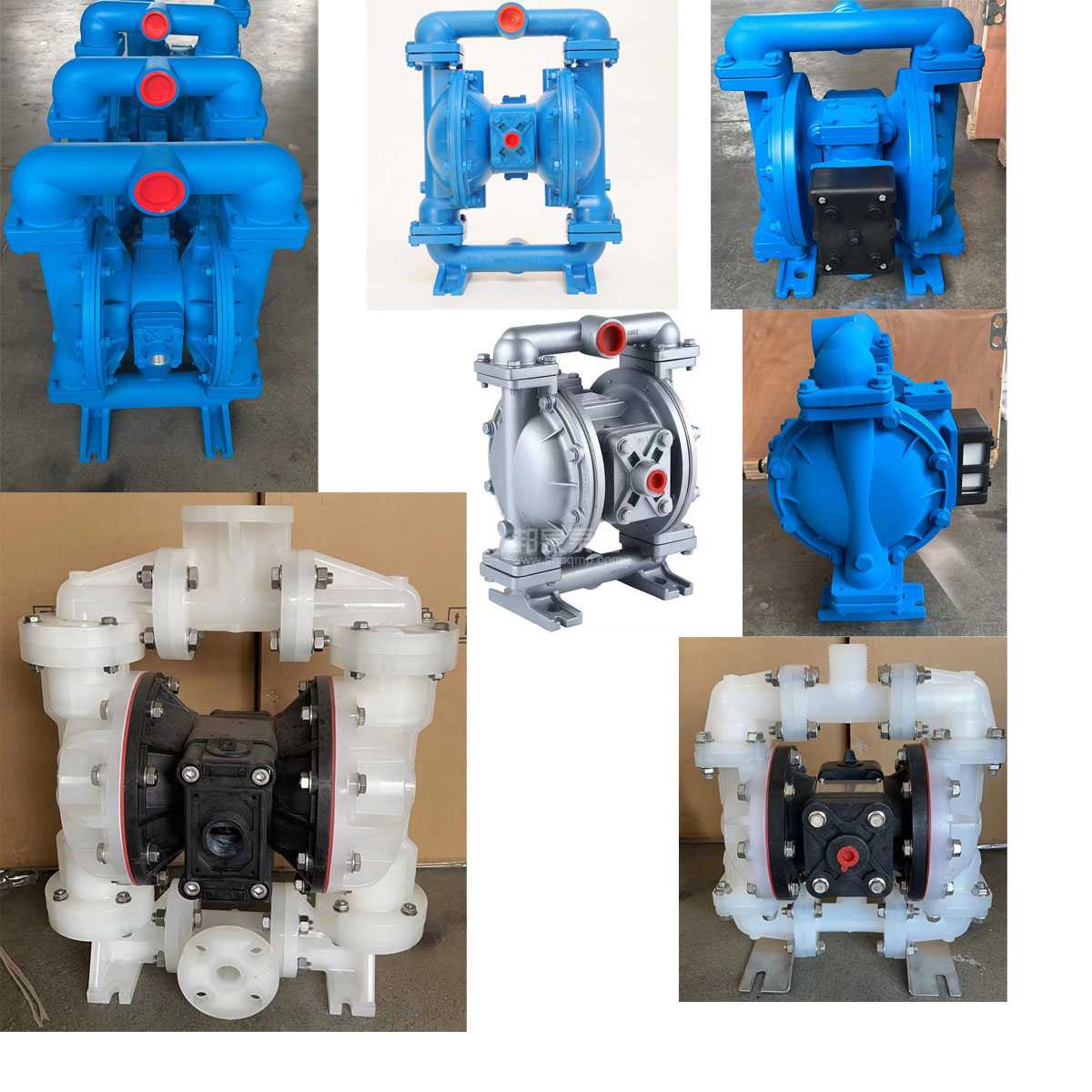

pneumatic diaphragm pump body material are: aluminum alloy, cast iron, stainless steel, polypropylene, pvdf, fluorine lined and so on.
气动隔膜泵泵体材质有：铝合金、铸铁、不锈钢、聚丙烯、pvdf、衬氟等。
bangquan aodd pumps adopt compressed air for power source and depend on diaphragms which move left and right to reach the volume sealed working chamber to achieve loading and discharging.
上海邦泉泵业制造有限公司气动隔膜泵采用压缩空气作为动力源，依靠向左和向右移动的膜片改变密封的腔体容积来实现进料和出料。
aodd pump is structured by suction port,discharge port, medium chamber and air chamber, air chamber is structured by main air valve，pilot valve, thimble on left diaphragm chamber and right diaphragm chamber,medium chamber is structured by left medium, right medium and check valve. check valve are set on the top or bottom,left and right medium chambers are connected by suction port and discharge port.
气动隔膜泵由吸入口、排放口、介质室和空气室构成，空气室由主气阀、导向阀、左膜片室和右膜片室的顶针构成，介质室为由左介质、右介质和止回阀构成。止回阀设置在顶部或底部，左、右中腔室通过进料口和出料口连接。
when aodd pump is working,left and right diaphragms are moving by compressed air, and the air valve has lubricating demand, so clear and dry air can improve the performance of aodd pump.
隔膜泵工作时，左右膜片均通过压缩空气运动，气阀有润滑要求，干燥的空气可提高气动隔膜泵的性能。
compressed air comes into air chamber across air inlet port,after the regulation of pilot valve,compressed air come into left diaphragm chamber and drive diaphragm move on the left ,the result is that the volume of left medium chamber decreases,the liquid is extruded.
压缩空气通过进气口进入气室，在导向阀调节后，压缩空气进入左侧隔膜室，驱动膜片向左移动，结果是左腔容积减小，液体被挤出。
because the right diaphragm and the left diaphragm are connected by an axle,the right diaphragm moves to the leftside,the right chamber volume increases,the liquid is inhaled. when the right diaphragm plate touches the right thimble,the rightthimble can change the direction of compressed air by pilot valve,air come into the right chamber,the left and right diaphragm move to the right side,the left medium chamber volume increases,liquid is in inhaled,the right chamber volume decreases,liquid is excluded. when the left diaphragm plate touches the left thimble,the air comes into left diaphragm chamber through pilot valve. the actions above are repeated complete the fluid continuous transporting on by aodd pump.
由于右膈膜和左膈膜通过轴连接，右膈膜向左移动，右腔容积增大，吸入液体。当右膈膜的压板接触右顶针时，右顶针可通过导向阀改变压缩空气的方向。空气进入右室，左、右膈膜向右侧移动，左腔容积增大，液体吸入，右腔容积减小，液体被排出。左膈膜压板接触左顶针时，空气进入左腔室，通过导向阀，重复以上动作完成气动隔膜泵的流体连续输送。
