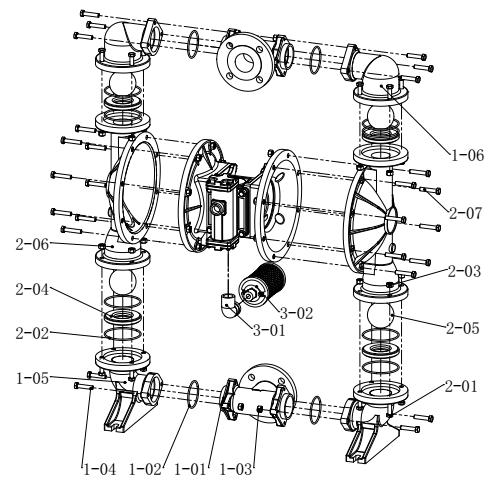

编号 |
规格型号 |
名称 |
数量 |
|
|
1050.1591 |
2"三通,bspt/al |
|
|
1050.1597 |
2”三通带法兰 al |
||
|
1050.1590 |
2”三通，bspt/ss(304) |
||
|
1050.1596 |
2”三通带法兰 304 |
||
|
1050.1593 |
2"三通,bspt/ss(316l) |
||
|
1050.1598 |
2”三通带法兰 316l |
||
|
1050.1595 |
2"三通,bspt/ci |
||
|
1050.1599 |
2”三通带法兰 ci |
||
|
|
1050.1600 |
2"三通o型圈,teflon |
|
|
1050.1601 |
2"三通o型圈,bn |
||
|
1050.1602 |
2"三通o型圈,viton |
||
|
1-03 |
1045.7203 |
2”三通螺帽 cs |
2 |
|
1045.7213 |
2”三通螺帽 304 |
||
|
1-04 |
1045.7103 |
2”三通螺栓 cs |
10 |
|
1045.7113 |
2”三通螺栓 304 |
||
|
|
1050.1491 |
2"进料口弯头,al |
2 |
|
1050.1490 |
2"进料口弯头,ss(304) |
||
|
1050.1493 |
2"进料口弯头,ss(316l) |
||
|
1050.1495 |
2"进料口弯头,ci |
||
|
1-06 |
1050.1791 |
2"出料口弯头,al |
|
|
1050.1790 |
2"出料口弯头,ss(304) |
||
|
1050.1793 |
2"出料口弯头,316l |
||
|
1050.1795 |
2"出料口弯头,ci |
||
|
2-01 |
1045.7101 |
2"外腔体螺栓 cs |
|
|
1045.7111 |
2"外腔体螺栓 304 |
||
|
2-02 |
1050.6100 |
2"球座密封圈（teflon） |
|
|
1050.6101 |
2"球座密封圈（丁腈） |
||
|
2-03 |
1045.7201 |
2"外腔体螺冒 cs |
|
|
1045.7211 |
2"外腔体螺冒 304 |
||
|
2-04 |
1050.6058 |
.2"球座,sp |
|
|
1050.6052 |
2"球座,ne |
||
|
1050.6054 |
2"球座,ptfe |
||
|
1050.6050 |
2"球座,ss |
||
|
|
1050.6158 |
2"阀球,sp |
|
|
1050.6152 |
2"阀球,ne |
||
|
1050.6154 |
2"阀球,ptfe |
||
|
1050.6150 |
2"阀球,ss |
||
|
|
1050.1991 |
2"外腔体,al |
2 |
|
1050.1990 |
2"外腔体,ss(304) |
||
|
1050.1993 |
2"外腔体,ss(316l) |
||
|
1050.1995 |
2"外腔体,ci |
||
|
2-07 |
1045.7101 |
2"外腔体螺栓 cs |
|
|
1045.7111 |
2"外腔体螺栓 304 |
||
|
3-01 |
1458.1301 |
2”消音器转接 |
1 |
|
3-02 |
1458.1300 |
2”消音器 |
1 |
|
number |
part number |
description |
quantity |
|
4-01 |
1045.3191 |
2"中间体,al |
1 |
|
4-02 |
1458.7201 |
2"主气阀螺钉 |
4 |
|
4-05 |
1458.1610 |
2"中间体螺丝o型圈 |
8 |
|
4-06 |
1458.3301 |
2"中间体o型圈 |
2 |
|
4-07 |
1050.3091 |
2"内腔体,al |
2 |
|
4-08 |
1458.7102 |
2"中间体螺钉 |
8 |
|
4-09 |
1458.7402 |
2"中间体螺丝弹垫 |
8 |
|
4-10 |
1458.7302 |
2"中间体螺丝平垫 |
8 |
|

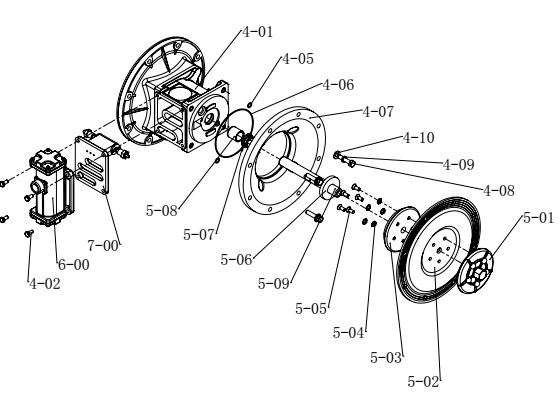

diaphragm assembly |
|||
|
5-01 |
1045.3291 |
2"外压板 al |
2 |
|
1045.3290 |
2"外压板 ss |
||
|
1045.3295 |
2"外压板 ci |
||
|
|
1050.8668 |
2"衬膜,sp |
2 |
|
1050.8662 |
2"衬膜,ne |
||
|
1050.8658 |
2"隔膜,sp |
||
|
1050.8652 |
2"隔膜,ne |
|
|
|
1050.8654 |
2"隔膜,ptfe |
||
|
5-03 |
1045.3391 |
2"内压板 |
2 |
|
5-04 |
1045.7105 |
2"外压板螺丝弹垫 |
10 |
|
5-05 |
1458.7502 |
2"外压板沉头螺丝 |
10 |
|
5-06 |
1045.6352 |
2"中间轴缓冲垫 |
2 |
|
5-07 |
1045.6452 |
2"中间轴u型圈 |
2 |
|
5-08 |
1045.3492 |
2"中间轴铜套 |
2 |
|
5-09 |
1045.3490 |
2"中间轴 |
1 |
|
number |
part number |
description |
quantity |
|

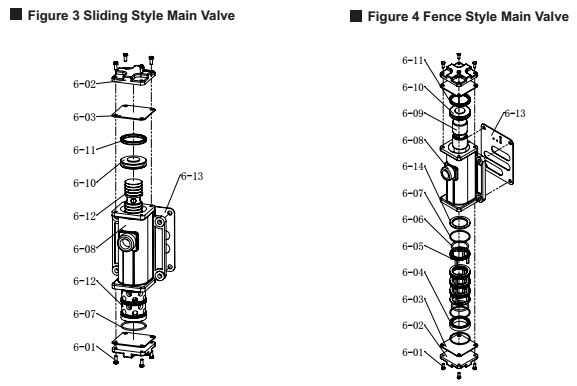

sliding style main valve |
|||
|
6-00a |
|
滑阀式气阀 |
1 |
|
6-01 |
51101000000003 |
2"主气阀端部螺丝 |
8 |
|
6-02 |
1458.1203 |
2"主气阀端部盖板 |
2 |
|
6-03 |
1458.6852 |
2"主气阀端部垫片 |
2 |
|
6-07 |
1458.1001 |
2"主气阀阀套外层o型圈 |
6 |
|
6-08 |
1458.1191 |
2"主气阀阀壳 |
1 |
|
6-10 |
1458.1202 |
2"主气阀活塞 |
1 |
|
6-11 |
1458.6200 |
2"主气阀活塞u型圈 |
1 |
|
6-12 |
1458.2200 |
2"主气阀阀套阀芯 |
1 |
|
6-13 |
1458.6752 |
2"主气阀垫片 |
1 |
|
fence style main valve |
|||
|
6-00b |
|
隔栏式气阀 |
1 |
|
6-01 |
1458.7202 |
2"主气阀端部螺丝 |
8 |
|
6-02 |
1458.1203 |
2"主气阀端部盖板 |
2 |
|
6-03 |
1458.6852 |
2"主气阀端部垫片 |
2 |
|
6-04 |
1458.1204 |
2"主气阀轴隔底座 |
1 |
|
6-05 |
1458.1201 |
2"主气阀轴隔 |
4 |
|
6-06 |
1458.1000 |
2"主气阀轴隔内层o型圈 |
5 |
|
6-07 |
1458.1001 |
2"主气阀轴隔外层o型圈 |
6 |
|
6-08 |
1458.1191 |
2"主气阀阀壳 |
1 |
|
6-09 |
1458.1200 |
2"主气阀阀芯 |
1 |
|
6-10 |
1458.1202 |
2"主气阀活塞 |
1 |
|
6-11 |
1458.6200 |
2"主气阀活塞u型圈 |
1 |
|
6-13 |
1458.6752 |
2"主气阀垫片 |
1 |
|
6-14 |
1458.1252 |
2"主气阀轴隔垫片 |
5 |
|
number |
part number |
description |
quantity |
|

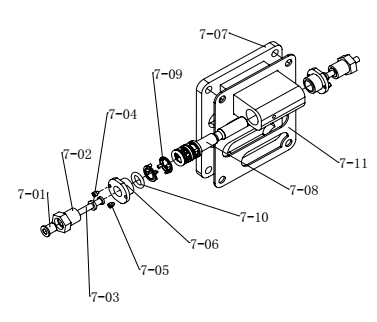

pilot valve |
|||
|
7-00 |
|
分配阀 |
1 |
|
7-01 |
1458.3693 |
2"顶针铜座袖套 |
2 |
|
7-02 |
1458.3692 |
2"顶针铜座 |
2 |
|
7-03 |
1458.3594 |
2"顶针 |
2 |
|
7-04 |
1458.3502 |
2"顶针缓冲垫 |
2 |
|
7-05 |
1000.7213 |
2"导向阀螺丝 |
4 |
|
7-06 |
1458.4203 |
2"导向阀衬套 |
2 |
|
7-07 |
1458.4204 |
2"导向阀阀壳 |
1 |
|
7-08 |
1458.4200 |
2"导向阀阀芯 |
1 |
|
7-09 |
1000.4201 |
2"导向阀轴隔 |
6 |
|
7-10 |
1000.4000 |
2"导向阀轴隔o型圈 |
4 |
|
7-11 |
1458.6652 |
2"导向阀垫片 |
1 |
|
number |
part number |
description |
quantity |
|
sk40 fluid space part package |
|||
|
sk50氯丁橡胶备件包 |
1050.8002 |
2"氯丁阀球 |
|
|
2"氯丁膜片 |
|
||
|
2"氯丁阀座 |
|
||
|
sk50特氟龙三道橡胶流体备件包 |
1050.8084 |
2"特氟龙三道橡胶阀球 |
|
|
2"特氟龙三道橡胶膜片 |
|
||
|
2"三道橡胶隔膜 |
|
||
|
2"特氟龙三道橡胶阀座 |
|
||
|
sk50特氟龙氯丁橡胶流体备件包 |
1050.8024 |
2"特氟龙氯丁橡胶阀球 |
|
|
2"特氟龙氯丁橡胶膜片 |
|
||
|
2"氯丁橡胶隔膜 |
|
||
|
2"特氟龙氯丁橡胶阀座 |
|
||
|
sk50三道橡胶流体备件包 |
1050.8008 |
2"三道橡胶阀球 |
|
|
2"三道橡胶膜片 |
|
||
|
2"三道橡胶阀座 |
|
||
