ls15 air drive diaphragm pump
上海邦泉泵业制造有限公司（ 86-21-57648032）
常用型号model
ls15,aa-aa-sp-sp-sp-00、ls15,aa-aa-t/s-tt-tt-00、ls15,ss-aa-sp-sp-sp-00、ls15,ss-aa-t/s-tt-tt-00
性能参数
最大流量57l/min，最大出口压力8.6bar
|
suction/discharge pipe size |
capacity |
air valve |
solids-handling |
heads up to |
displacement |
weight(kg) |
|
|
1/2" （f）,1" （m） threaded port |
57lpm (max) |
no-lube, no-stall |
1/8" / 3mm (max) |
125 psi / 8.6bar of water |
0.04gallon / 0.15 liter |
8(al) |
10(cs\ss) |

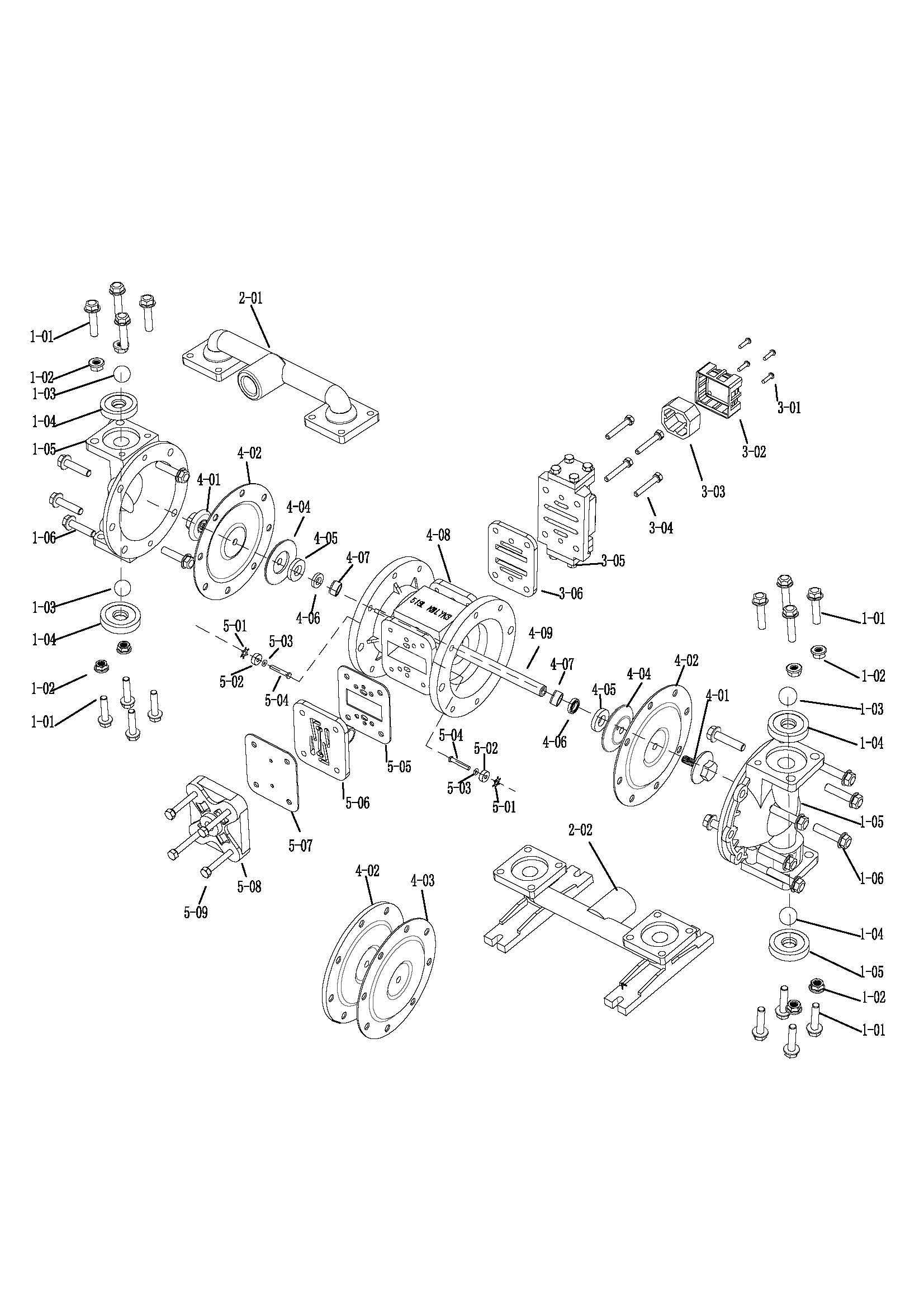

ls15不锈钢气动隔膜泵结构图stainless steel (housing material)
|
number |
part number |
description |
quantity |
|
1-01 |
0015.2198 |
capscrew |
16 |
|
1-02 |
0015.2199 |
nut,hex |
8 |
|
1-03 |
0015.6154 |
ball,check |
4 |
|
|
0015.6158 |
|
|
|
1-04 |
0015.6054 |
seat,check valve |
4 |
|
|
0015.6058 |
|
|
|
1-05 |
0015.1990 |
chamber,outer |
2 |
|
1-06 |
0015.2298 |
capscrew |
16 |
|
2-01 |
0015.1890 |
manifold,discharge |
1 |
|
2-02 |
0015.1690 |
manifold,suction |
1 |
|
3-01 |
0015.1303 |
capscrew |
4 |
|
3-02 |
0015.1302 |
muffler cap |
1 |
|
3-03 |
0015.1301 |
muffler |
1 |
|
3-04 |
0015.1001 |
capscrew |
4 |
|
3-05 |
0015.1091 |
air valve |
1 |
|
3-06 |
0015.6752 |
gasket,air valve |
1 |
|
4-01 |
0015.3290 |
plate,outer diaphragm |
2 |
|
4-02 |
0015.8658 |
diaphragm |
2 |
|
|
0015.8652 |
|
|
|
4-04 |
0015.3391 |
plate,inner diaphragm |
2 |
|
4-05 |
0015.6352 |
bumper,diaphragm |
2 |
|
4-06 |
0015.6452 |
seal,u-cap shaft |
2 |
|
4-07 |
0015.3892 |
bushing |
2 |
|
4-08 |
0015.3191 |
bracket,intermediate |
1 |
|
4-09 |
0015.3490 |
rod,diaphragm |
1 |
|
5-01 |
0015.3502 |
ring,retaining |
2 |
|
5-02 |
0015.3501 |
bushing |
2 |
|
5-03 |
0015.6252 |
o-ring |
2 |
|
5-04 |
0015.3594 |
pin,actuator |
2 |
|
5-05 |
0015.6652 |
gasket,pilot valve |
1 |
|
5-06 |
0015.4040 |
pilot valve |
1 |
|
5-07 |
0015.6552 |
gasket,air inlet |
1 |
|
5-08 |
0015.4391 |
cap,air inlet assembly |
1 |
|
5-09 |
0015.4301 |
capscrew |
4 |
|
number |
part number |
description |
quantity |
|

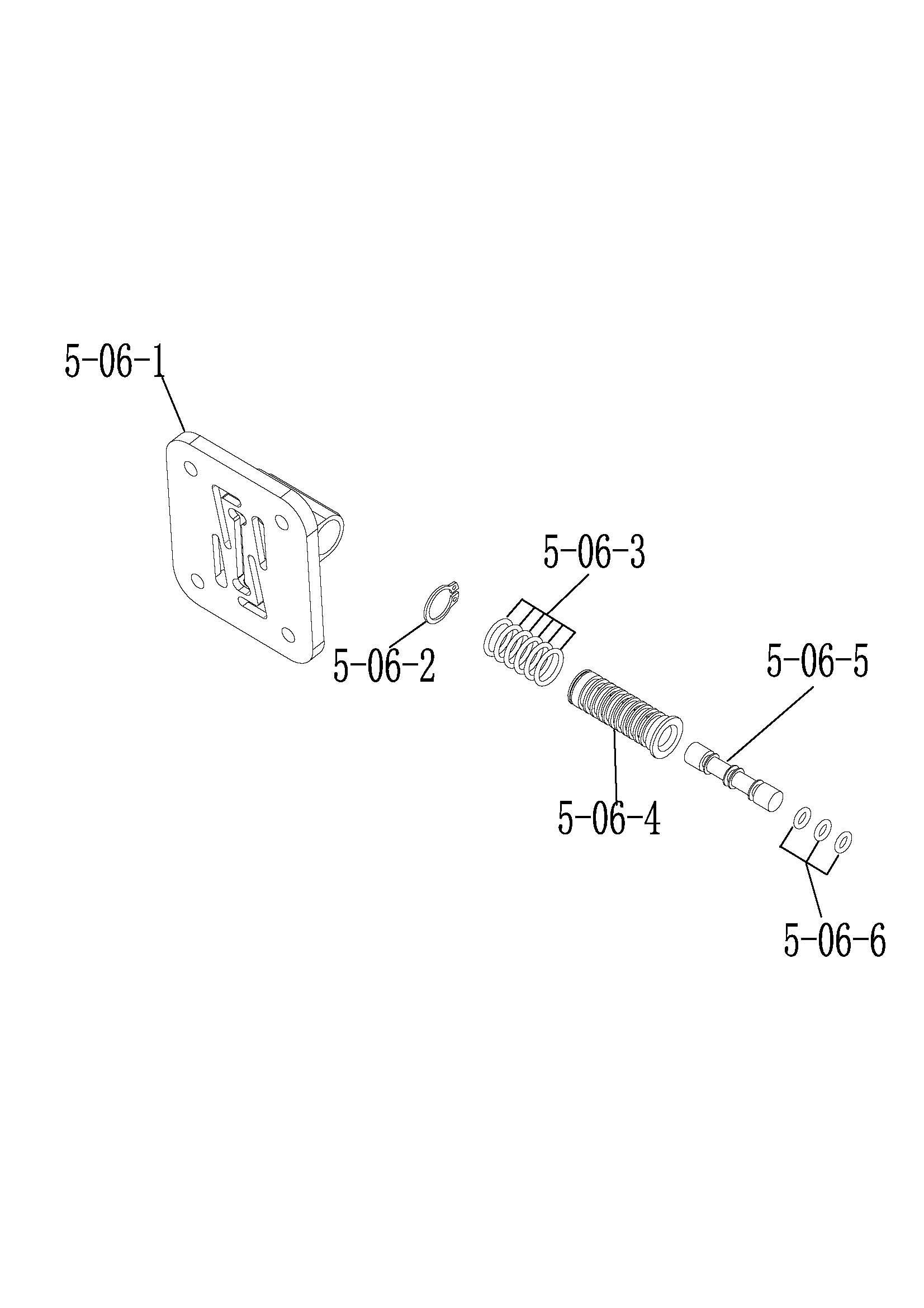

5-06 |
0015.4040 |
pilot valve |
1 |
|
5-06-1 |
0015.4041 |
pilot valve assembly |
1 |
|
5-06-2 |
0012.3502 |
retaining ring |
1 |
|
5-06-3 |
0000.7052 |
o-ring |
6 |
|
5-06-4 |
0012.4202 |
sleeve |
1 |
|
5-06-5 |
0012.4201 |
spool |
1 |
|
5-06-6 |
0000.6952 |
o-ring |
3 |
|
number |
part number |
description |
quantity |
|

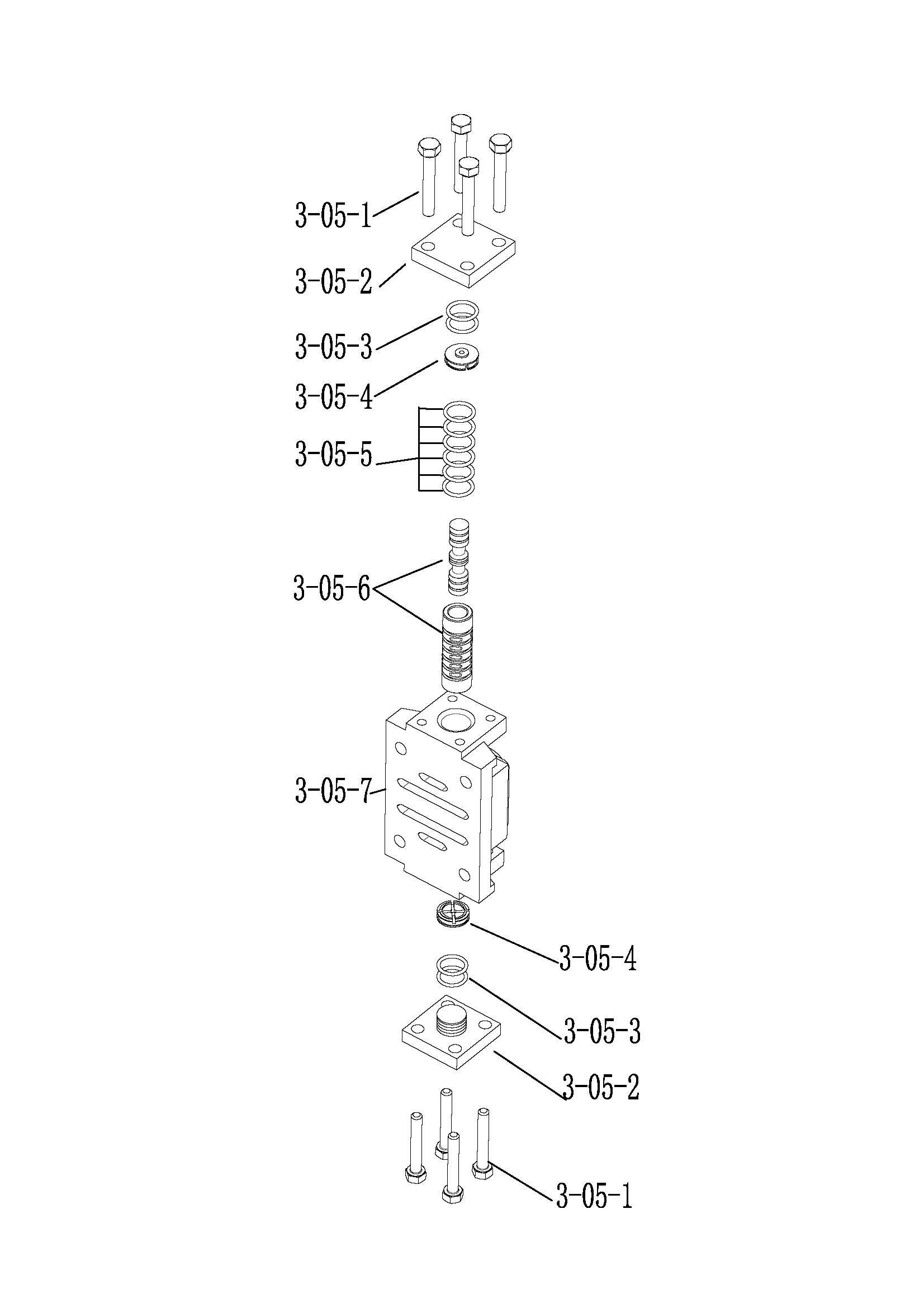

3-05 |
0015.1091 |
air valve |
1 |
|
3-05-1 |
0015.2098 |
capscrew |
8 |
|
3-05-2 |
0015.3502 |
cap,end |
2 |
|
3-05-3 |
0000.7052 |
o-ring |
4 |
|
3-05-4 |
0015.6452 |
bumper |
2 |
|
3-05-5 |
0015.1200 |
o-ring |
6 |
|
3-05-6 |
0015.1200 |
sleeve and spool set |
1 |
|
3-05-7 |
0015.1191 |
air valve assembly |
1 |
